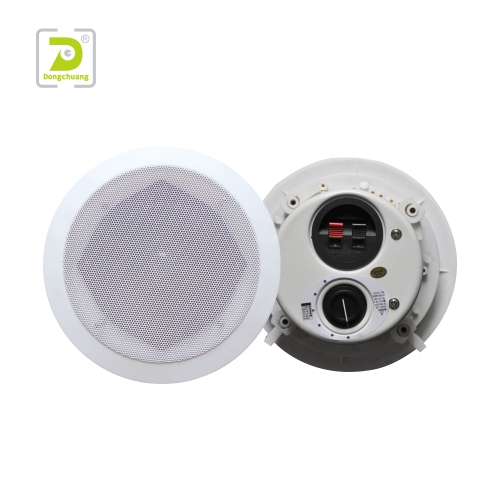

Y-021 With metal back-can, impedence and voltage optional, with 5" coaxial tweeter
Y-022 With metal back-can, impedence and voltage optional, with 6" coaxial tweeter
Y-023 With metal back-can, impedence and voltage optional, with 8" coaxial tweeter,
|
Model |
Y-021 |
Y-022 |
Y-023 |
|
Frequency response |
100-20000Hz |
90-20000Hz |
50-20000Hz |
|
nput way |
70V/100V/82 |
70V/100V/8 |
70V/100V/82 |
|
Sensitivity |
88db |
88db |
88db |
|
Speaker size |
5inch,1.5inch |
6inch,1.5inch |
8inch,1.5inch |
|
Net weight |
1.8KG |
2.3KG |
3.1KG |
|
Gross weight |
2KG |
2.5KG |
3.3KG |
|
Rated output power |
1.25/2.5/5/10/20W(70V) |
1.9/3.75/7.5/15/30W(70V) |
2.5/5/10/20/40W(70V) |
|

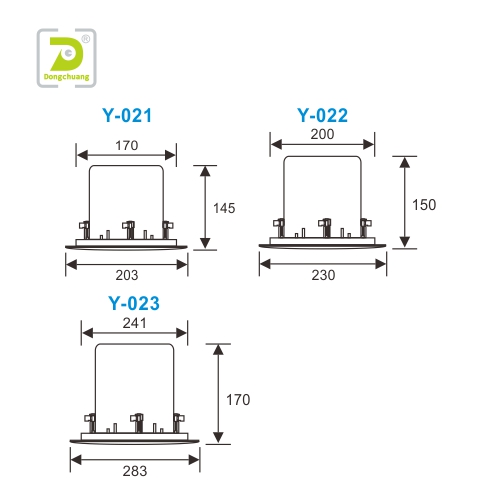

nstall dimension |
Ф170mm |
Ф200mm |
Ф241mm |
|
Product dimension |
Ф203*145mm |
Ф230*150mm |
Ф283*170mm |
|
acking dimension |
480*245*435(4PCS) |
560*285*430(4PCS) |
670*340*490(4PCS) |
Y-023 With metal back-can, impedence and voltage optional, with 8" coaxial tweeter,
